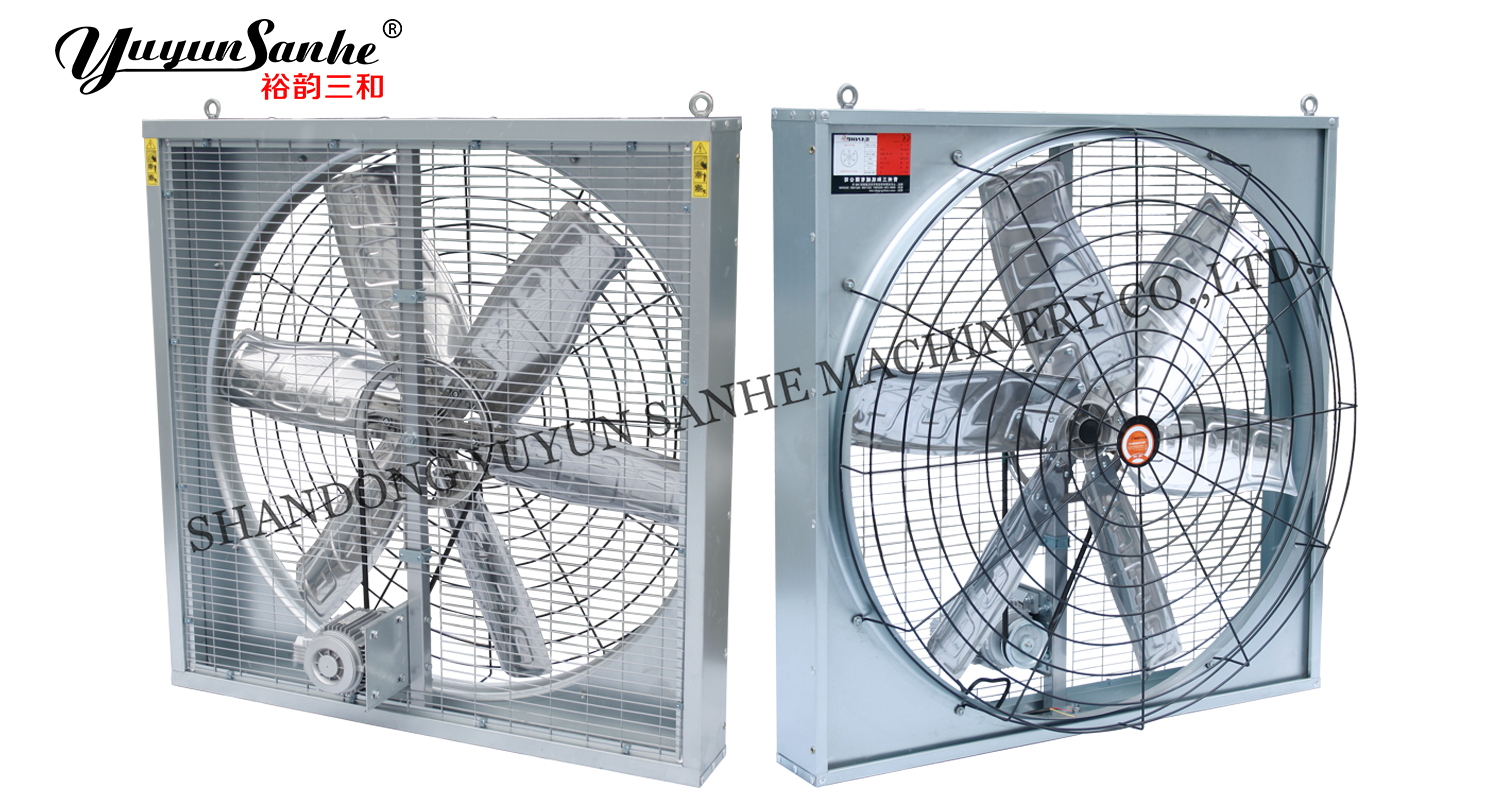

Hanging Type Cow House Fan Dairy Farm Fan Cowshed Fan for Poultry Farm Ventilation and Cooling

Hanging Type Cow House Fan Dairy Farm Fan Cowshed Fan for Poultry Farm Ventilation and Cooling

Fan Brand	Yuyun Sanhe
Fan Model	DJF(b)-1-1530, DJF(b)-1-1380, DJF(b)-1-1220, DJF(b)-1-1100, DJF(b)-1-1000, DJF(b)-1-900
Outline Size	60'', 54'', 48", 43", 39", 35"
Blades Diameter	55", 50", 43", 40", 35", 30"
Frame Material	Galvanized Steel/304SS
Blades Material	430SS/304SS
Motor Brand	Yuyun Sanhe Motor/Siemens Motor/WEG motor/ABB motor
Belt Brand	Mitsuboshi Belt
Voltage	220V/380V/Customized
Phase	1 phase / 3 phase
Frequency	50HZ/60HZ

Inquiry

Application
Parameter
Detail
Certification
Workshop
Packing and Transportation
Installation

Application

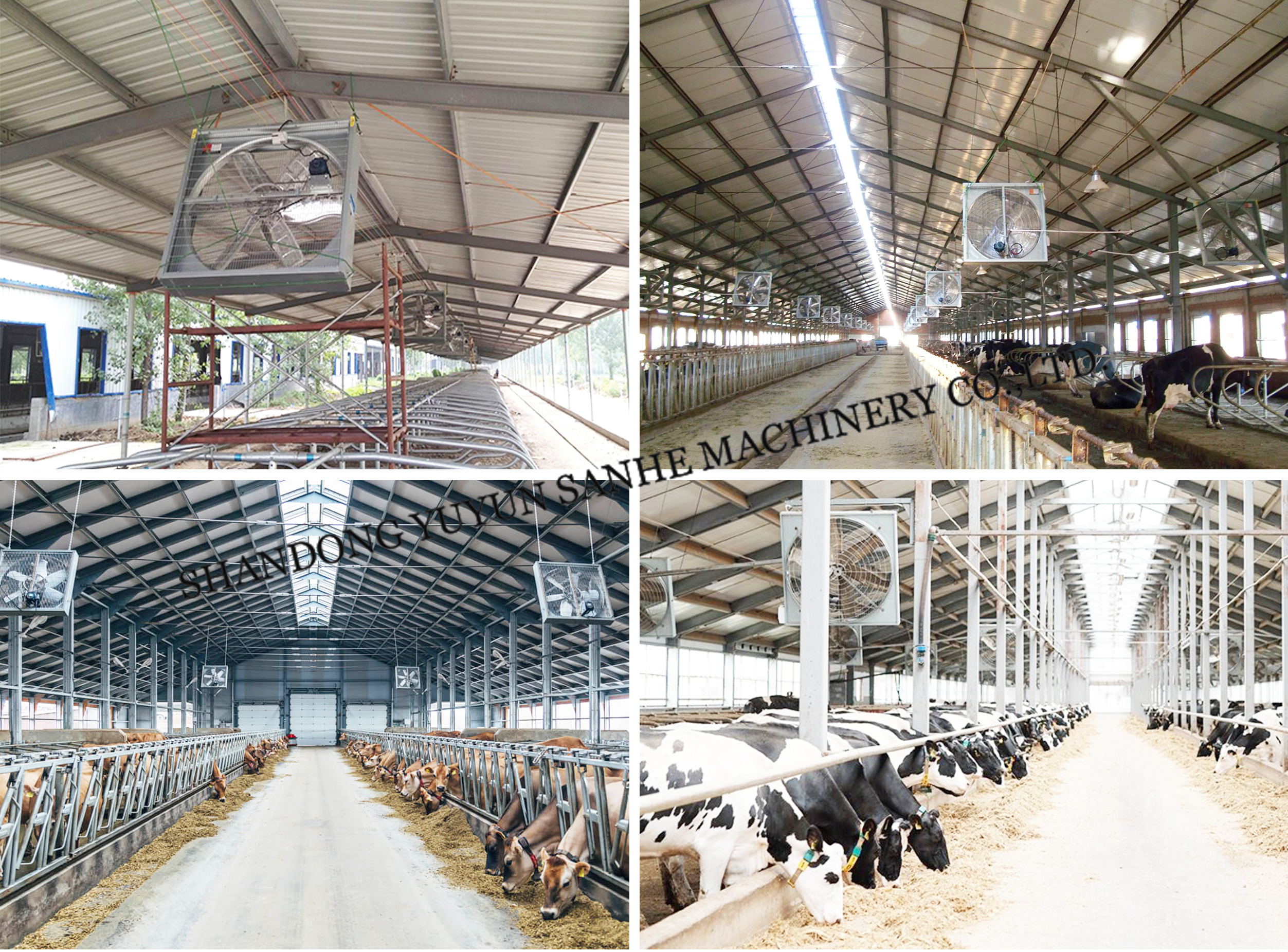

DJF(b)-1 series Hanging Fan are widely used in agriculture and industry ventilation and cooling. it is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Parameter

Model	Blades Diameter (mm)	Blades Rotational Speed (rpm)	Motor Rotational Speed (rpm)	Air Flow (m³/h)	Total Pressure (pa)	Noise Decibels (dB)	Input Power (W)	Powe Parameter	Height (mm)	Width (mm)	Thickness (mm)
DJF(b)-1-900(30")	750	630	1400	28000	65	≤65	370	380V/50Hz	900	900	420
DJF(b)-1-1000(35")	910	610	1400	30000	70	≤70	750	380V/50Hz	1000	1000	420
DJF(b)-1-1100(40")	1000	600	1400	32500	70	≤70	750	380V/50Hz	1100	1100	420
DJF(b)-1-1220(43")	1100	460	1400	38000	73	≤70	750	380V/50Hz	1220	1220	420
DJF(b)-1-1380(50")	1270	439	1400	44000	56	≤70	1100	380V/50Hz	1380	1380	420
DJF(b)-1-1380(50")Plastic Fan Blades	1270	439	1400	42000	56	≤70	1100	380V/50Hz	1380	1380	420
DJF(b)-1-1530(55")	1400	325	1400	55800	60	≤70	1500	380V/50Hz	1530	1530	420

Note: the voltage and frequency can be customized

Detailed Introduction

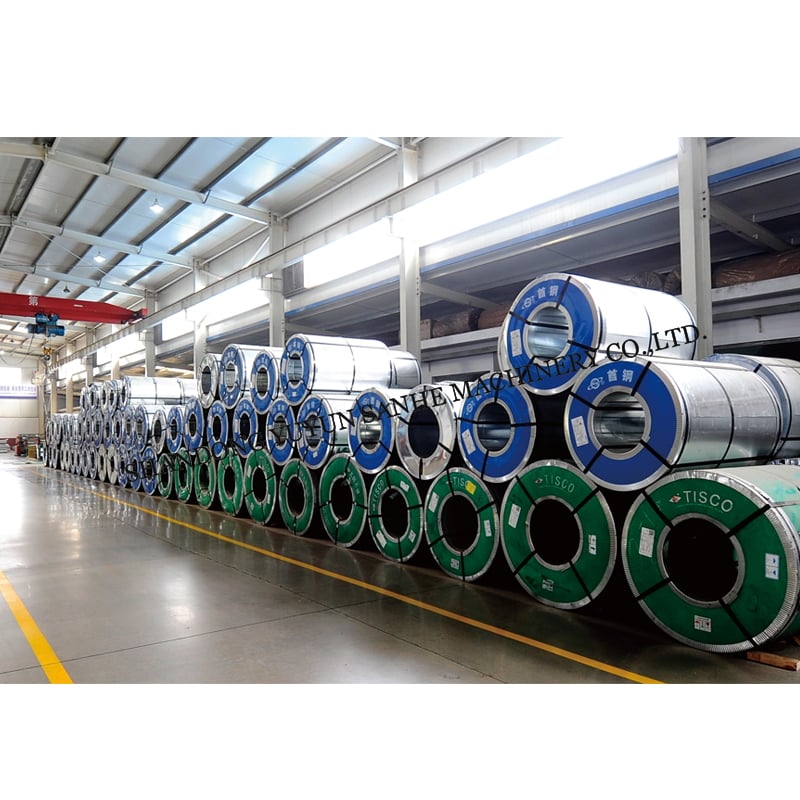

Fan frame material are all 275g/㎡ hot-dip galvanized steel. The steel coils are directly purchased from the famous Chinese steel company, which not only guarantees product quality but also reduces production costs.

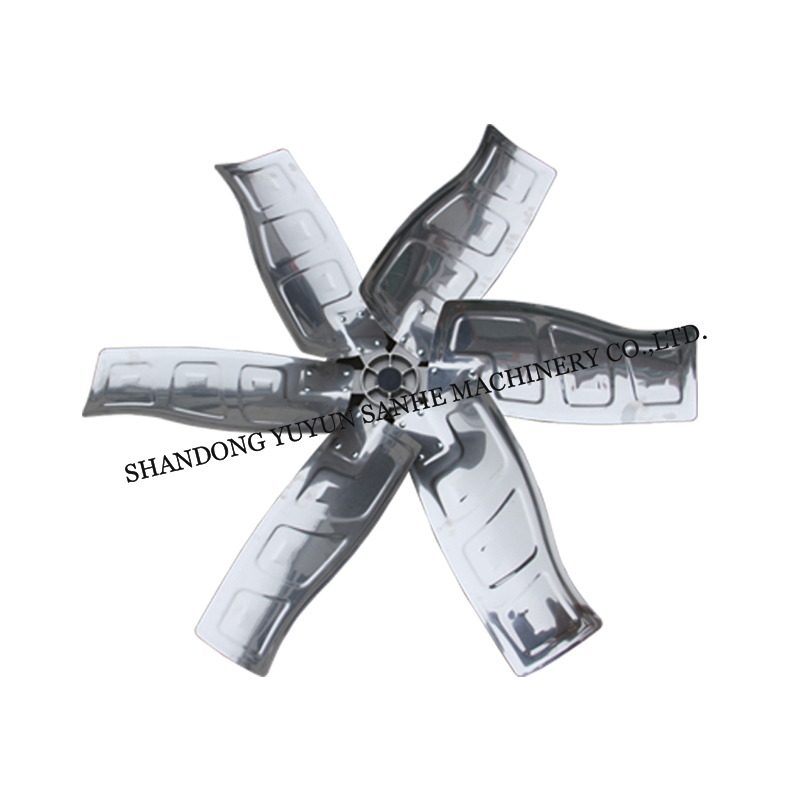

Fan blades material is Krupp self-cleaning 430BA Stainless Steel, large air volume, high efficiency, no deformation, no dust, beautiful and durable. 304 2B Stainless Steel blades can also be customized.

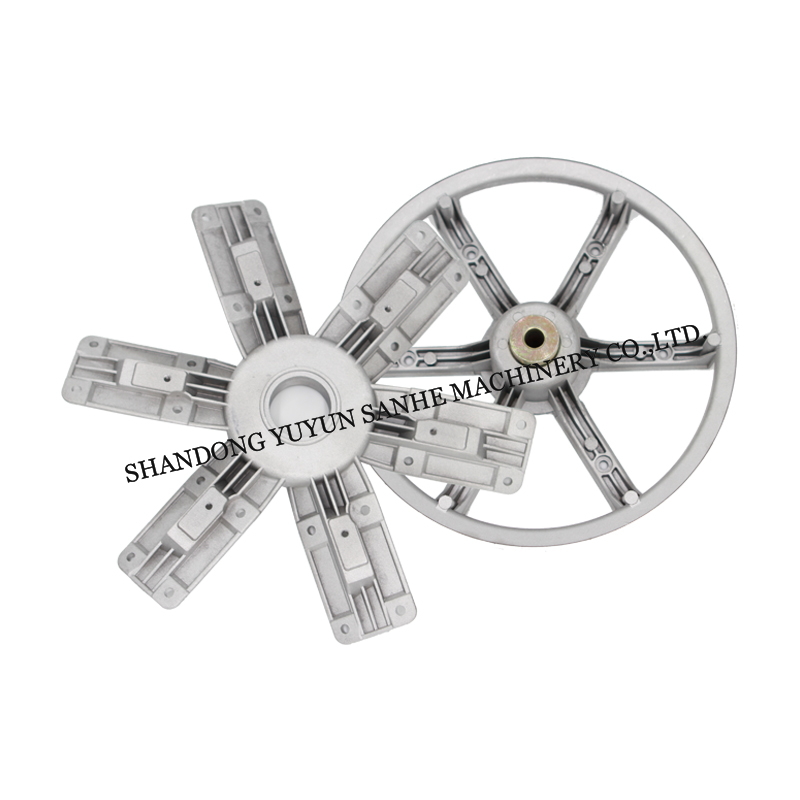

Belt pulley is made of high strength aluminum-magnesium alloy by die-casting. Light weight, low vibration, high strength, and no breakage.

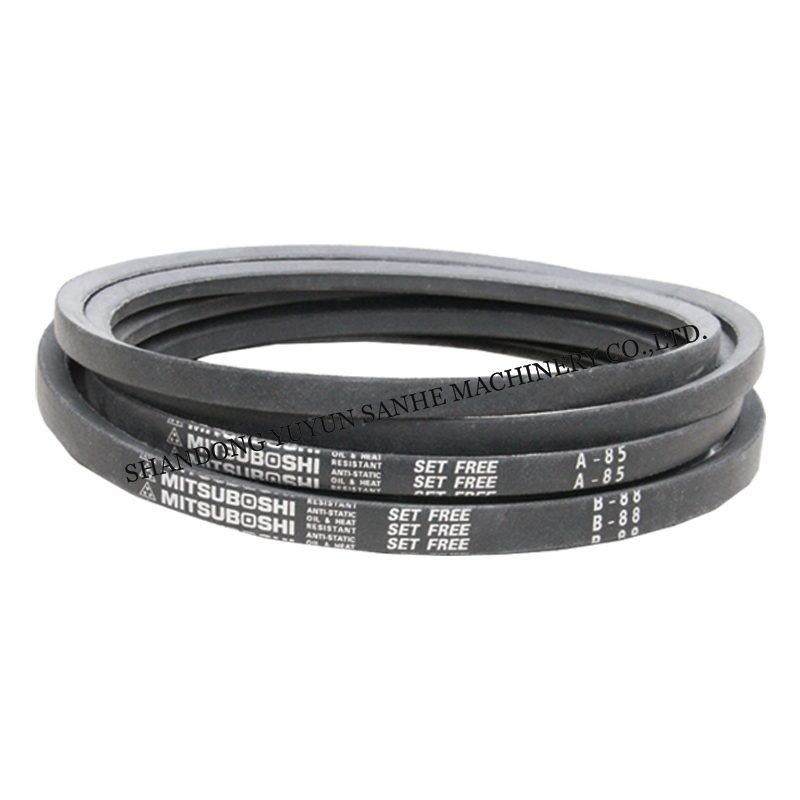

Mitsuboshi belt imported from Japan to guarantee quality and service life.

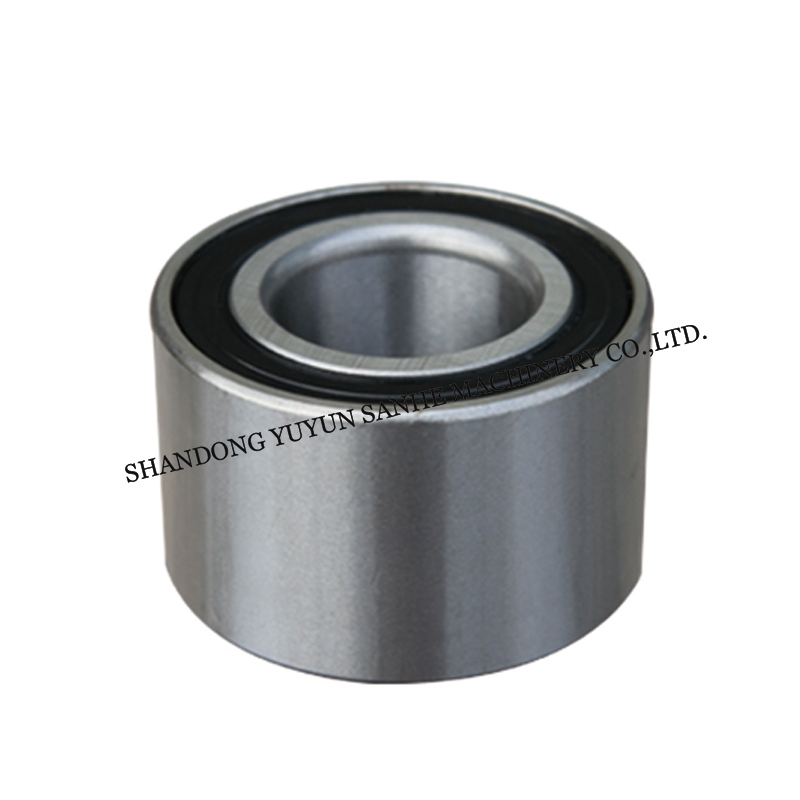

Imported double-row bearing with special waterproof design, high strength, low noise, free maintenance and long service life.

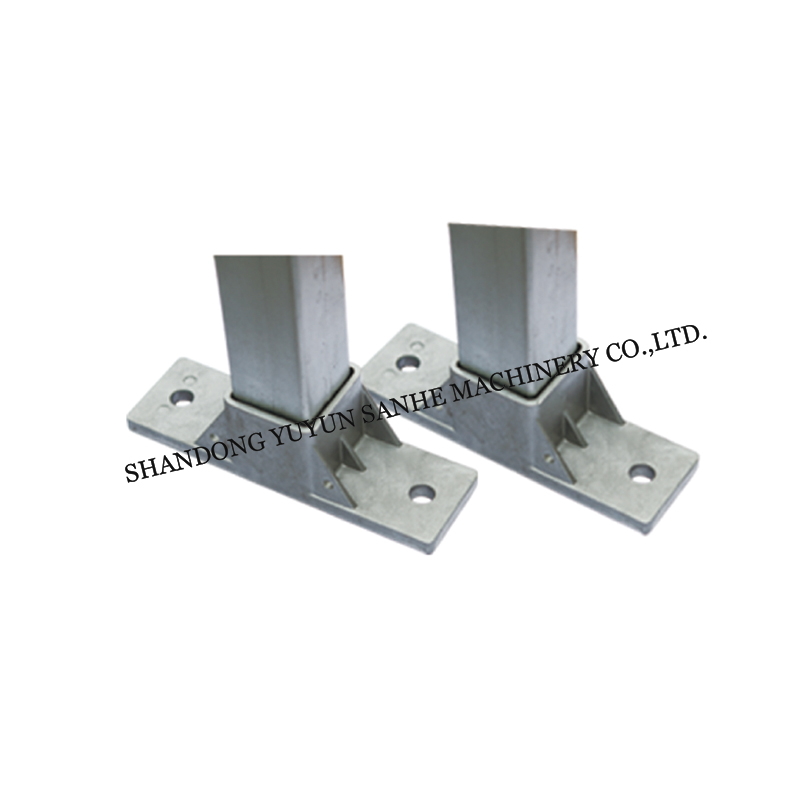

Aluminum-magnesium alloy base, low vibration, firm fixation, beautiful appearance and no rust.

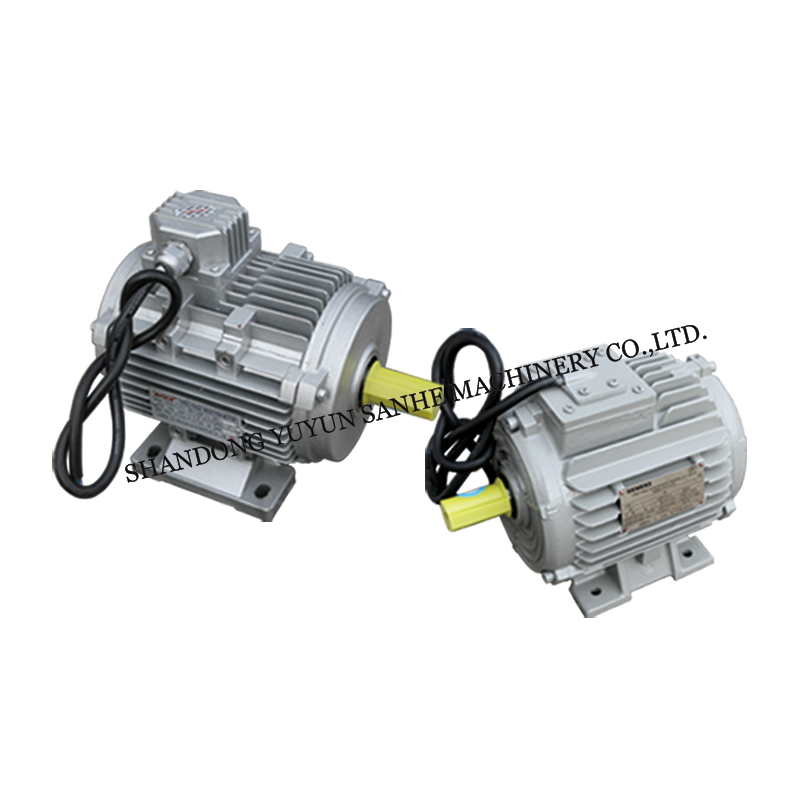

Yuyun Sanhe motor, Siemens motor, WEG motor, ABB motor are optional. Voltage and Frequency can be customized.
Protection Grade: IP55 Insulation Level: F

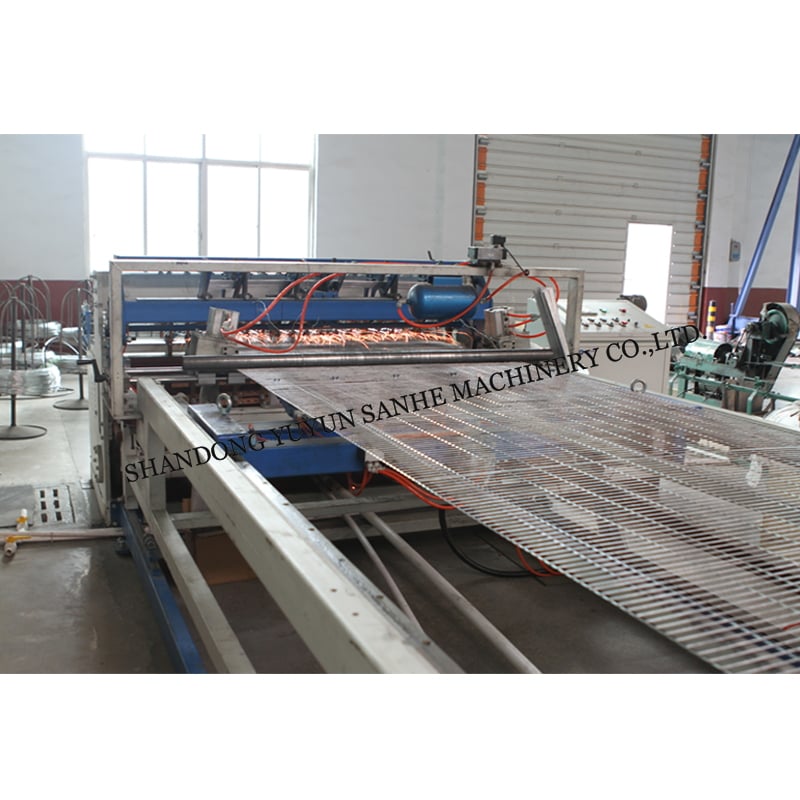

Safe net is made of hot-dip galvanized wire welding and plastic spraying treatment, double protection, no rust.

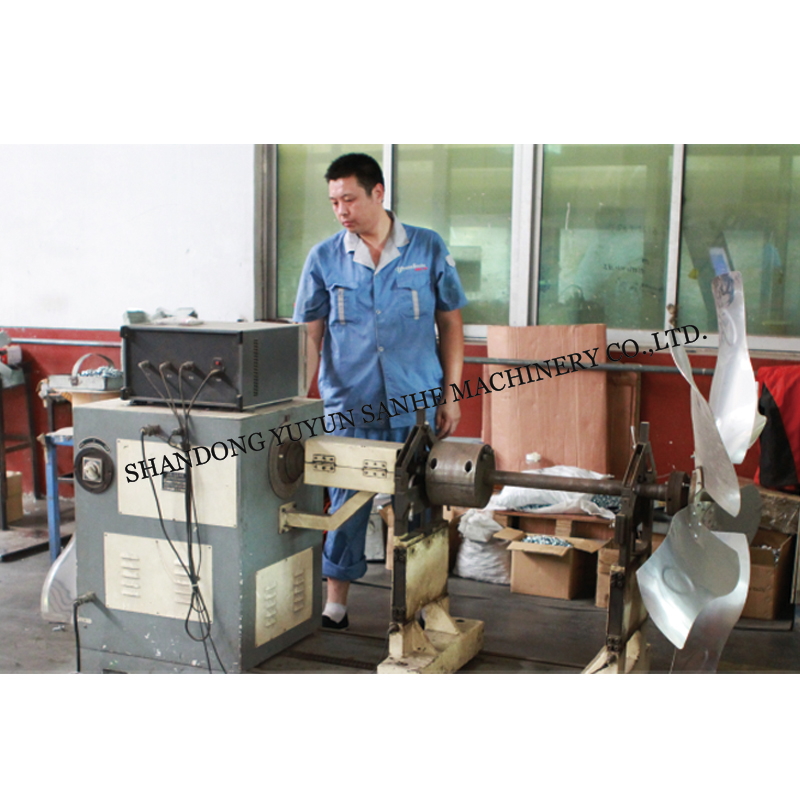

Fan blades have been calibrated by an advanced computer dynamic balance tester, low vibration, low noise and high stability.

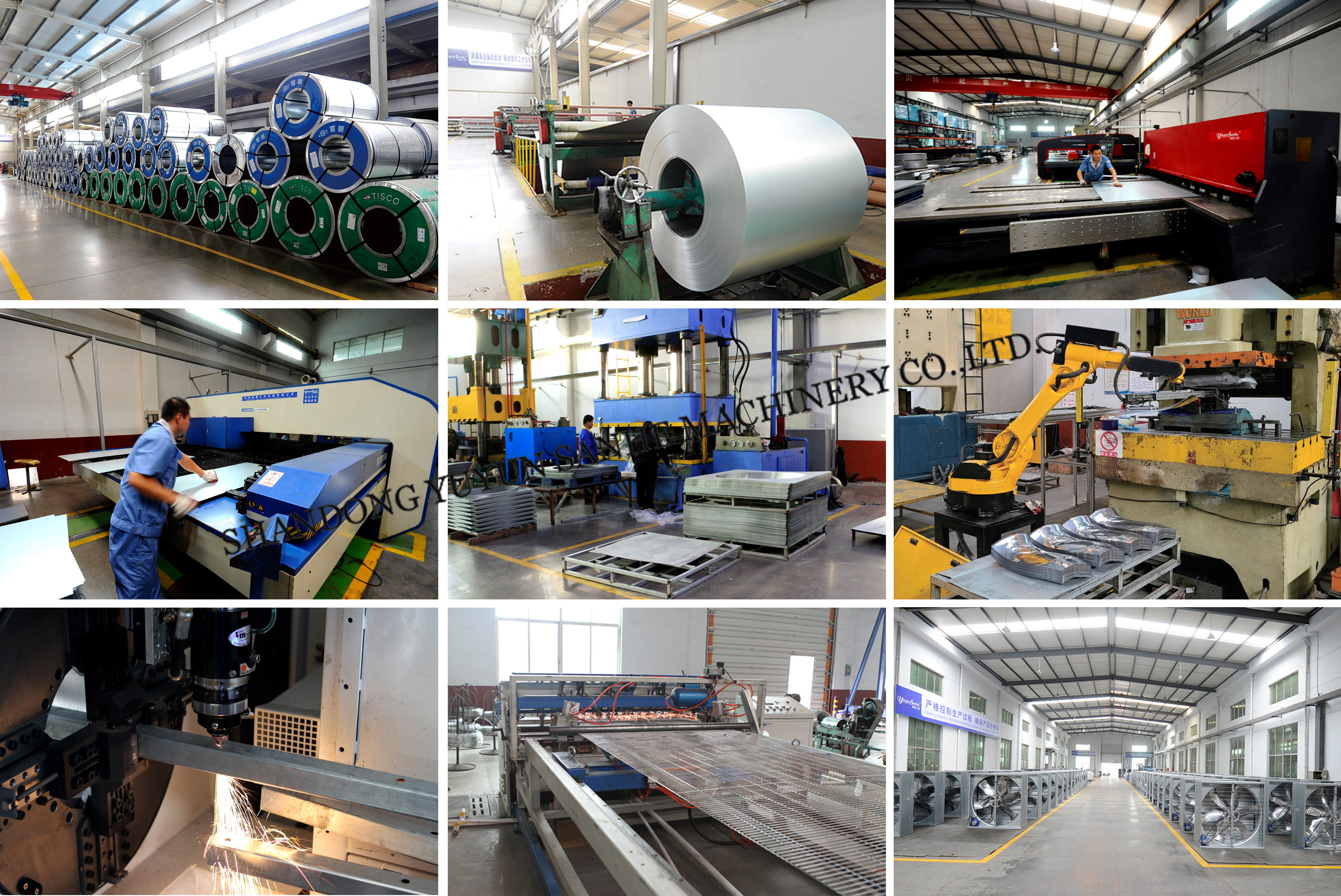

All fan parts are produced by CNC production, quality assurance, beautiful appearance, leading the industry.
